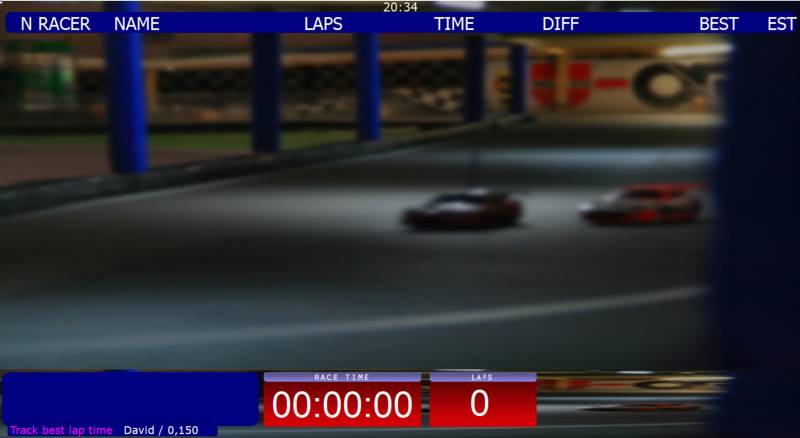

Secondary Monitor
Secondary monitor is designed to be used on big displays.It shows real time classification with custom information, colors and sizes.
The view has these elements:
| Item | Description |
|---|---|
| Clock | System time is shown on top |
| Header | Columns info header |
| Background | Can be a color or a configurable image |
| Race info | Description of running session shown botton left |
| Track beset lap time | |
| Race time | |
| Laps | Number of completed laps |
| Logo | Shown at bottom right |
Full Screen mode
You can change to full screen - window mode by:
- Double click on the race time clock
- Alt+ENTER key combination (v1.21.12 or higher)
- Context menu item Full Screen (v1.21.12 or higher)
Settings
The view can be customized by these options on the context menu.
| Item | Description |
|---|---|
| Increase | Increase font size. Shortcut Ctrl+ |
| Decrease | Decrease font size. Shortcut Ctrl- |
| Auto | Automatic font size |
| Show time | Show/Hide the system clock at top |
| Column | Deploy a submenu to select the desired columns to display |
| Start trainining | Start the clock for practice |
| Start race | Start the clock for race |
| Stop | Stop the clock |
| Disable speech | Mute text to spech reading out |
| Full Screen | Toggle full screen on/off |
| Close Monitor | Close the this window |
Additional settings:
