MyLaps AMBrc Lapcounter

ZRound works with Serial and Ethernet AMBrc links.

• You must activate the lapcounter by checking the Activate option.
• Detecion only is done if there is a practice or race in progress.
• Min. hit settings helps you to configure the minimun signal level allowed.

• Full serial port name must be configured at Port setting.

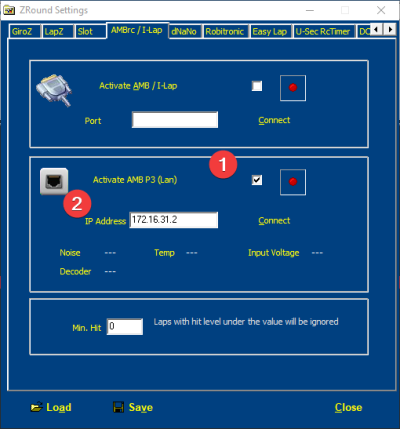

When Activate AMB P3 (Lan) option is checked, ZRound will automatically search for a decoder over the network.

If it is not found then an error is displayed on the ZRound console (AMB Decoder not found on network). Anyhow, you can force the decoder address on the IP Address setting.
